5.0 inch IPS TFT LCD Module with 1080RGBx1080 Resolution and MIPI Interface

Name: 50 inch IPS TFT LCD Module with 1080RGBx1080 Resolution and MIPI Interface
Brand: HuaXin
Price: 1 USD

Buy cheap 5.0 inch IPS TFT LCD Module with 1080RGBx1080 Resolution and MIPI Interface product

Model Number : HX50FHD001A

interface : MIPI

MOQ : 1000

Delivery Time : 6weeks~8weeks

view angle : ALL 0' clock

Brand Name : HuaXin

Packaging Details : blister+foam box+bubble bag+inside carton+master carton

Payment Terms : T/T

name : TFT LCD MODULE

Driving IC : HX8399C

Price : negotiation

size : 5.0"

Supply Ability : 100K per month

Display Technology : IPS TFT

Certification : ISO14001/ISO9001/IATF16949

resolution : 1080(RGB)*1080

Place of Origin : China

Contact Now

5.0 inch IPS TFT LCD Module,1080RGBx1080 resolution , MIPI Interface, Driving IC HX8399C 6LEDS,ALL VIEW

Product Specifications

Part NO.	HX50FHD001A
Display Technology	IPS TFT LCD
Diagonal Screen Size	5.0inch
Active Area (mm)	127.00(H)X127.00(V)
Panel size(mm)	132.20(H)X136.53(V)X1.98(T)
Brightness(cd/m2)	TBD
Resolution	1080(RGB)*1080
Interface	MIPI
View angle	ALL o'clock
Driving IC	HX8399C

Product Picture

5.0 inch IPS TFT LCD Module with 1080RGBx1080 Resolution and MIPI Interface

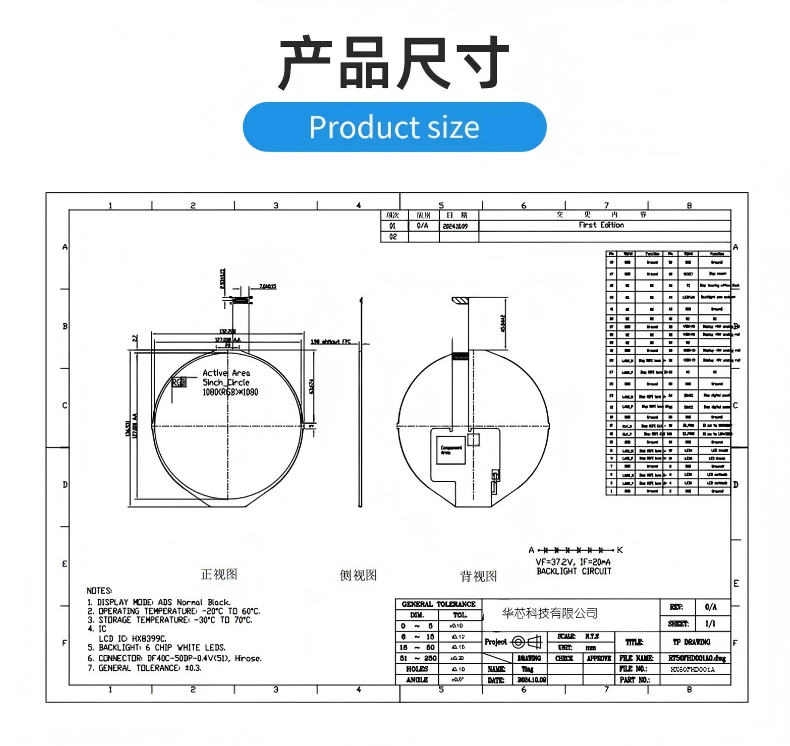

Technical Drawing

5.0 inch IPS TFT LCD Module with 1080RGBx1080 Resolution and MIPI Interface

TFT Technology Overview

Manufacturer Information

Huaxin Technology (Enshi) Co., LTD
Located in Hubei, Enshi | Founded: 2009
High-technology enterprise specializing in R&D, production, and sales of LCD, LCM, TFT, backlight, and OLED displays

Company Advantages:

Cost-effective factory base in inland city
Advanced equipment for stable quality
Automated processes for efficiency and consistency
Expert engineering team with 20+ years experience
Custom product design capabilities

Certifications: ISO14001, ISO9001, IATF16949, SGS for LCD modules

Product Portfolio:

LCD: VA, TN, HTN, STN, FSTN, CSTN series
LCM: COB, TBA, COG, TP, LED backlight series

Company Statistics:

Registered capital: 20 million
Current staff: 500+ employees
R&D accounts for 10% of workforce
QC accounts for 15% of workforce

Production Capacity

Product Type	2021	2022	2023	2024	2025	Unit
LCD Production	4.5	9	9	9	9	Thousands of logarithms/Day
LCM Production	70	150	300	450	450	Thousand pieces/Day
Backlight Production	100	200	300	500	500	Thousand pieces/Day
OLED Production	10	20	30	40	50	Thousand pieces/Day

Product Applications

Car navigation systems & printers
Video call systems & advertising displays
Automotive & medical devices
Fitness equipment & handheld devices
Industrial control systems & home appliances

TFT Display Advantages

Excellent image quality with high resolution, sharpness, and color accuracy
Fast response times for quick pixel switching
Wide viewing angles with minimal color shifts
Energy-efficient operation
Available in various sizes from small handheld to large panel displays
LED backlighting for screen illumination
Wide range of applications across multiple industries

TFT Display Limitations

Limited viewing angles compared to some technologies
Limited contrast ratio
Backlighting requirements and power consumption
Response time limitations and potential motion blur
Limited flexibility in display form factors
Limited color gamut range
